GRANIFRIGOR™ Tropic

The GRANIFRIGOR™ Tropic grain cooling units are performance- and energy consumption- optimised for the temperature and humidity of the tropical climate.

Fields of application

  • Reliable grain cooling in tropical climates (heat, high humidity, monsoons and fog) - Secure control of air humidity due to HYGROMAT™ automatic
  • Complete suitability and reliable operation even at very high outside temperatures due to safety refrigerants
  • Standard medium pressure version - also ideal for tower silos
Cooling grain in tropical climates

Product overview

Grain cooling in tropical weather

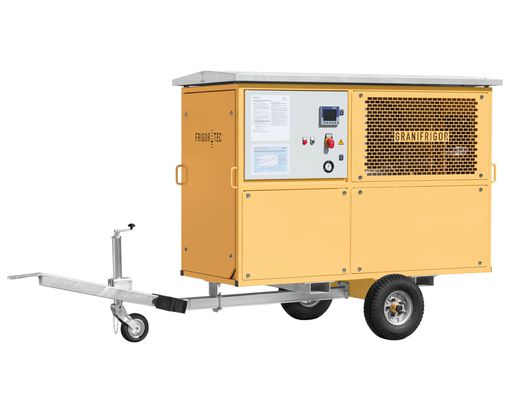

GRANIFRIGOR™GC 60 Tropic

  • Storage size 2.100 t
  • Cools 55-120 tons in 24 hours
  • Up to 2,100 tons in 3 weeks
Cooling grain in tropical climates

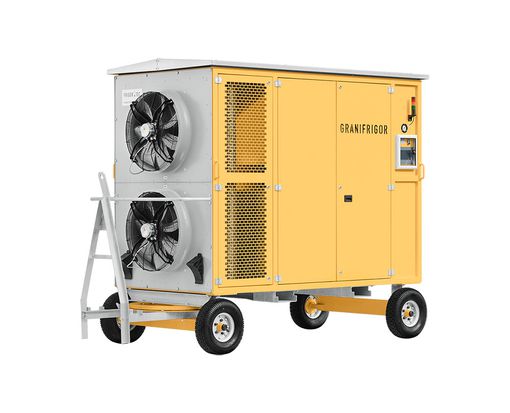

GRANIFRIGOR™GC 220 Tropic

  • Storage size 7.700 t
  • Cools 220-370 tons in 24 hours
  • Up to 7,700 tons in 3 weeks
Cooling grain in tropical climates

GRANIFRIGOR™GC 310 Tropic

  • Storage size 10.000 t
  • Cools 310-520 tons in 24 hours
  • Up to 10,000 tons in 3 weeks
Cooling grain at high temperatures

GRANIFRIGOR™GC 460 Tropic

  • Storage size 16.000 t
  • Cools 460-750 tons in 24 hours
  • Up to 16,000 tons in 3 weeks
Conserving grain in tropical regions

GRANIFRIGOR™GC 560 Tropic

  • Storage size 20.000 t
  • Cools 560-900 tons in 24 hours
  • Up to 20,000 tons in 3 weeks
Cooling grain in the tropics

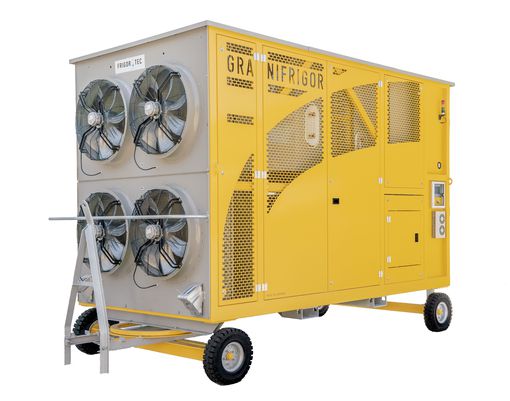

GRANIFRIGOR™GC 650 Tropic

  • Storage size 25.000 t
  • Cools 650-1,100 tons in 24 hours
  • Up to 25,000 tons in 3 weeks
Strongest grain cooler in its class

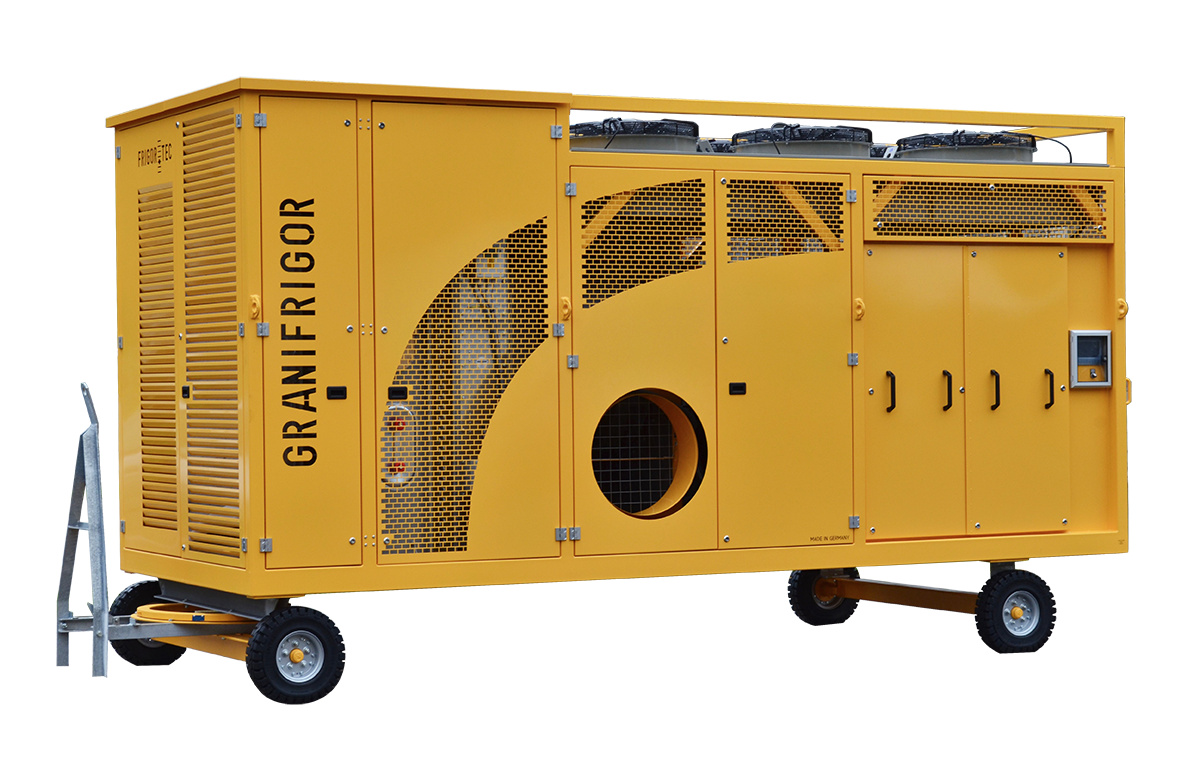

GRANIFRIGOR™GC 1000 Tropic

  • Storage size 35.000 t
  • Cools 900-1,500 tons in 24 hours
  • Up to 35,000 tons in 3 weeks

GRANIFRIGOR™

Grain cooling in tropical weather

GC 60 Tropic

Cooling grain in tropical climates

GC 220 Tropic

Cooling grain in tropical climates

GC 310 Tropic

Cooling grain at high temperatures

GC 460 Tropic

Conserving grain in tropical regions

GC 560 Tropic

Cooling grain in the tropics

GC 650 Tropic

Strongest grain cooler in its class

GC 1000 Tropic

Storage size upto2.100 t7.700 t10.000 t16.000 t20.000 t25.000 t35.000 t
Cooling performance in 24 hours55 - 120 t/Day220 - 370 t/Day310 - 520 t/Day460 - 750 t/Day560 - 900 t/Day650 - 1100 t/Day900 - 1.500 t/Day
Refrigerating capacity compressor25105 kW160 kW225 kW270 kkW320 kW470 kW
CHILLED AIR FAN
Volume flow4.600 m 3/h12.500 m 3/h18.000 m 3/h25.000 m 3/h25.000 m 3/h26.000 m 3/h52.000 m 3/h
Pressure maximum3.400 Pa6.000 / 8.000 Pa6.000 / 8.000 Pa6.000 Pa6.000 Pa6.000 Pa4.000 Pa
ELECTRICAL DATA
Output (average)9 kW35 kW53 kW78 kW85 kW95 kW140 kW
Max. current consumption23 A92 A118 A186 A214 A300 A470 A
Electrical connection32 A100 A125 A250a A250 A300 A500 A
CONNECTIONS
∅ Connections cold air hose300 mm400 mm400 mm600 mm600 mm600 mm800 mm
Condensation water runoff average15 l/h35 - 40 l/h45 - 65 l/h65 - 100 l/h120 l/h150 l/h250 l/h
∅ Condensation water runoff hose3/4 Zoll3/4 Zoll3/4 Zoll3/4 Zoll3/4 Zoll3/4 Zoll3/4 Zoll
DIMENSIONS (L X W X H)
With Tyres3.570 x 1.320 x 1.880 mm3.300 x 1.550 x 2.450 mm3.710 x 1.810 x 2.550 mm3.950 x 2.130 x 2.900 mm3.950 x 2.130 x 2.900 mm4.400 x 2.130 x 2.900 mm5.800 x 2.130 x 2.900 mm
With swivelling casters2.230 x 990 x 1.695 mm2.950 x 1.550 x 2.250 mm3.370 x 1.810 x 2.410 mm3.740 x 2.130 x 2.690 mm3.740 x 2.130 x 2.690 mm4.200 x 2.130 x 2.690 mm5.100 x 2.130 x 2.690 mm
Weight
With Tyres700 kg1.650 kg2.000 kg3.000 kg3.200 kg3.950 kg4.800 kg
With swivelling casters650 kg1.500 kg1.900 kg2.750 kg2.950 kg3.700 kg4.400 kg

Product description

Handling and operation

  • Particularly powerful compressors and large heat exchangers for tropical conditions
  • Quiet normal running due to frequency-controlled fans and sound-optimised compressors
  • Different operating modes due to fully automated Siemens S7 controller: very quiet (whisper mode -often has to run at night), rapid cooling (booster mode), ventilation mode (only air) and normal operation
  • Efficient, large-area filters with integrated filter monitoring
  • Increased safety through counter pressure display
  • Optimal control through inspection windows in the air cooler
  • Reliable start even at low outside temperatures due to speed-controlled condenser fans
  • Easy and thorough cleaning due to good accessibility e.g. by heat exchangers with wide fin spacing, housing doors, manholes and inspection openings in the air duct

Energy and environmental balance

  • Economical solution due to low power consumption
  • Energy-efficient design due to frequency controls and state-of-the-art motors
  • Environment friendly safety refrigerant - without CFCs and without HCFCs
  • Additional energy savings through winter and summer thermostats
  • Permanent compliance and monitoring of setpoint cooling air humidity and temperature with HYGROTHERM™
  • Standard sound insulation for GC 220-GC 560

Workmanship and quality

  • HYGROTHERM™ heating coil as standard
  • Robust construction due to stainless steel condensate tray
  • Corrosion protection through coated heat exchangers
  • Chassis with robust pneumatic tyres for increased puncture protection for GC 60, optional swivel castors
  • Extra safe chassis equipment with puncture-proof solid rubber tyres with GC 220 - GC 560, optionally swivel castors
  • Multi-stage quality control with factory test run
  • Easy maintenance due to large, fully panelled doors
  • Robust industrial design
  • Depending on the design, large TÜV-tested refrigerant collectors and subcoolers
  • CE-compliant versions

Options

  • High pressure blower (HP) for slim-line silo cells
  • Protective grille against animals
  • Parking supports
  • Forklift pockets for easy device transport using a forklift
  • Alarm modem (notification via SMS/email) for permanent monitoring
  • Modem for remote diagnosis/remote display (app, LAN, WiFi / WLAN, GSM)
  • Sound-proof cabin for -15 to -20 dB(A)
  • Electrical heating coil
  • Rotating field monitoring for effective device protection
  • Signal light for convenient device monitoring from a distance
  • Fully automatic cool stop function
  • FrigorTec app

Know-How

With over 60 years of experience in grain cooling, we have acquired extensive specialist knowledge in all areas. We look forward to bringing this know-how to bear on your grain storage challenges.

Tecnología y función de un refrigerador de cereal

How grain coolers work

Read article
Qué hay que tener en cuenta al instalar refrigeradores de cereal

The best cooling strategy for your grain storage method

Read article
Protección y seguridad del cereal frente a plagas y micotoxinas

How you protect your grain from fungi and pests

Read article
Grain cooling units are economical

Economical introduction and operation of grain cooling

Read article
Installing, configuring, and operating a grain cooling unit

Commissioning and maintenance of grain cooling devices

Read article
Successful cooling strategy for grain, whole grain rice, and white rice

Combining grain coolers for a flexible solution

Read article
For conserving grain independent of the weather

Safe storage conditions no matter the weather

Read article

Highlights GRANIFRIGOR

  • Fully automatic Siemens S7 controller
  • Remote-controlled operation via FrigorTec app
  • Low power consumption
  • Large area filter
  • Pressure-stable cooling air high pressure fans
  • Rigid, welded frame construction
  • Multi-coated steel parts
  • Partially soundproofed housing UV-resistant external cable
  • Eyelets for lashing on every housing corner
  • Compressor from renowned manufacturer, e.g. Bitzer
  • Many options available
  • Factory test run before delivery
